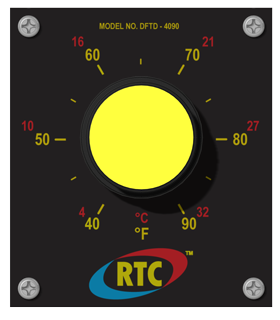

DFTD: Direct Fired Temperature Dial

DFTD Attributes

Overview

• 5 Selectable temperature ranges with one dial
  o 40°F-90°F (4°C - 32°C)
  o 80°F-130°F (26°C - 54°C)
  o 120°F-170°F (48°C - 76°C)
  o 160°F-210°F (71°C - 99°C)
  o 200°F-250°F (93°C - 121°C)
• Combine dials for dual temperature selection
• Fits ¼” wiring terminals
• Mounting footprint matches other industry standard controls
