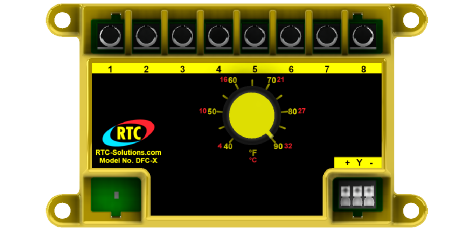

DFC-X: Direct Fired Temperature Control with Integral Selector and Optional Remote Setpoint Selection

(Direct Replacement for DFC-1 and DFC-2)

DFC-X Attributes

Overview

• Rated for -40°F (-4°C)
• Built in Maintenance Mode
• Mounting Footprint Matches Other Industry Standard Controls
• Built in 10 Second Low Fire Start Timer
• 0-24V DC Modulating Output
• 24V AC Power

Normal Operation and Installation

• Option for remote temperature selection or integral temperature  selection
• Remote Dial Auto Detection
• Fits ¼” Wiring Terminals

Data Sheet

User's Manual

Schematic

Video
